Orchestra Device Manager¶

The following commands are used for operations on the devices on the Orchestra Device Manager. Currently, it supports the following operation:

$ ocli device --help

Usage: ocli device [OPTIONS] COMMAND [ARGS]...

Options:
--help  Show this message and exit.

Commands:
get       Get device by device id
get-many  Get devices by list of devices id
list      Lists all devices
update    Update device name by device id

Commands get, get-many and update require specifying which device_id to get, the specific operation can be found by calling --help on those commands. All available commands have a not-required option -m/--mode which specifies how to print the result. It can be set to 'normal'/'json'/'csv' and the result will print in the desired format. The 'normal' mode pretty-prints results in the form of a table, it is the default option.

get¶

This command is used to get information about one device with a specified id.

$ ocli device get --help

Usage: ocli device get [OPTIONS] DEVICE_ID

Get device by device id

Options:
-m, --mode TEXT  Defines the output mode. Can be 'normal', 'json' or 'csv'
--help           Show this message and exit.

You have to specify the device_id as an argument at the end of the command. Option -m/--mode specifies how to print the result. It can be set to 'normal'/'json'/'csv' and the result will print in the desired format. The 'normal' mode pretty-prints results in the form of a table, it is the default option.

This command can fail if it fails to get data from Orchestra, in a such situation it will display such a message: "Error from orchestra. Status code {response.status_code}"

Command

$ ocli device get <DEVICE_ID>

Output

$ ocli device get 66729536aacf78527f191f64
╒═══════════════╤═════════╤═══════════════════════════╤═══════════════════════════╤══════════════╤══════════════════════════╤═════════════╤══════════════╕
│ name          │ type    │ created_at                │ updated_at                │ expires_at   │ id                       │ with_data   │ connection   │
╞═══════════════╪═════════╪═══════════════════════════╪═══════════════════════════╪══════════════╪══════════════════════════╪═════════════╪══════════════╡
│ charming_borg │ GATEWAY │ 2024-06-19 08:22:14+00:00 │ 2024-06-19 08:22:14+00:00 │              │ 66729536aacf78527f191f64 │ True        │ ONLINE       │
╘═══════════════╧═════════╧═══════════════════════════╧═══════════════════════════╧══════════════╧══════════════════════════╧═════════════╧══════════════╛

Use option -m json to get output in a json:

Command

$  ocli device get <DEVICE_ID> -m json

Output

$  ocli device get 66729536aacf78527f191f64 -m json
[
    {
        "name": "charming_borg",
        "type": "GATEWAY",
        "created_at": "2024-06-19T08:22:14Z",
        "updated_at": "2024-06-24T12:30:30Z",
        "expires_at": null,
        "id": "66729536aacf78527f191f64",
        "with_data": true,
        "connection": 2
    }
]

get-many¶

This command is used to get information about the list of devices with specified ids.

$ ocli device get-many --help

Usage: ocli device get-many [OPTIONS]

Get devices by list of devices id

Options:
-f, --device-list-file TEXT  Filepath to a file containing a list of device IDs to get, separated by newlines [required]
-m, --mode TEXT              Defines the output mode. Can be 'normal', 'json' or 'csv'
--help                       Show this message and exit.

You have to specify the filepath to a file containing list of device ids separated by newlines in option -f/--device_list_file. Option -m/--mode specifies how to print the result. It can be set to 'normal'/'json'/'csv' and the result will print in the desired format. The 'normal' mode pretty-prints results in the form of a table, it is the default option.

This command can fail in three ways: - If it fails to get data from Orchestra, in such a situation it will display such a message: "Error from orchestra. Status code {response.status_code}" - If the fail does not exist: "File {device_list_file} not found" - If there are no device_ids in the file: "No device IDs to get"

Command

$ ocli device get-many -f <input_file>

Output

$ ocli device get-many -f devices
╒════════════════════════╤═════════╤══════════════════════════════════╤══════════════════════════════════╤══════════════╤══════════════════════════╤═════════════╤══════════════╕
│ name                   │ type    │ created_at                       │ updated_at                       │ expires_at   │ id                       │ with_data   │ connection   │
╞════════════════════════╪═════════╪══════════════════════════════════╪══════════════════════════════════╪══════════════╪══════════════════════════╪═════════════╪══════════════╡
│ publication            │ GATEWAY │ 2024-01-08 07:37:32.927000+00:00 │ 2024-01-08 07:38:06.355000+00:00 │              │ 659ba63cb30451ebeff25b79 │ True        │ OFFLINE      │
├────────────────────────┼─────────┼──────────────────────────────────┼──────────────────────────────────┼──────────────┼──────────────────────────┼─────────────┼──────────────┤
│ rebellion-acquaintance │ GATEWAY │ 2024-03-11 21:22:28.880000+00:00 │ 2024-03-11 21:23:12.560000+00:00 │              │ 65ef7614240f106c1b32cb24 │ True        │ OFFLINE      │
╘════════════════════════╧═════════╧══════════════════════════════════╧══════════════════════════════════╧══════════════╧══════════════════════════╧═════════════╧══════════════╛

Example input file:

659ba63cb30451ebeff25b79
65ef7614240f106c1b32cb24

list¶

This command is used to get information about all devices of a specified tenant.

$ ocli device list --help
Usage: ocli device list [OPTIONS]

    Lists all devices

Options:
    -m, --mode TEXT  Defines the output mode. Can be 'normal', 'json' or 'csv'
    --help           Show this message and exit.

It does not have any arguments or options to specify . Option -m/--mode specifies how to print the result. It can be set to 'normal'/'json'/'csv' and the result will print in the desired format. The 'normal' mode pretty-prints results in the form of a table, it is the default option.

This command can fail if it fails to get data from Orchestra, in such a situation it will display such message: "Error from orchestra. Status code {response.status_code}"

Command

$ ocli device list

Output

$ ocli device list
╒════════════════════════╤═════════╤══════════════════════════════════╤══════════════════════════════════╤══════════════╤══════════════════════════╤═════════════╤══════════════╕
│ name                   │ type    │ created_at                       │ updated_at                       │ expires_at   │ id                       │ with_data   │ connection   │
╞════════════════════════╪═════════╪══════════════════════════════════╪══════════════════════════════════╪══════════════╪══════════════════════════╪═════════════╪══════════════╡
│ charming_borg          │ GATEWAY │ 2024-06-19 08:22:14.640000+00:00 │ 2024-06-19 08:22:14.640000+00:00 │              │ 66729536aacf78527f191f64 │ True        │ ONLINE       │
├────────────────────────┼─────────┼──────────────────────────────────┼──────────────────────────────────┼──────────────┼──────────────────────────┼─────────────┼──────────────┤
│ publication            │ GATEWAY │ 2024-01-08 07:37:32.927000+00:00 │ 2024-01-08 07:38:06.355000+00:00 │              │ 659ba63cb30451ebeff25b79 │ True        │ OFFLINE      │
├────────────────────────┼─────────┼──────────────────────────────────┼──────────────────────────────────┼──────────────┼──────────────────────────┼─────────────┼──────────────┤
│ rebellion-acquaintance │ GATEWAY │ 2024-03-11 21:22:28.880000+00:00 │ 2024-03-11 21:23:12.560000+00:00 │              │ 65ef7614240f106c1b32cb24 │ True        │ OFFLINE      │
╘════════════════════════╧═════════╧══════════════════════════════════╧══════════════════════════════════╧══════════════╧══════════════════════════╧═════════════╧══════════════╛

update¶

This command is used to update the name of a specified device.

$ ocli device update --help

Usage: ocli device update [OPTIONS] DEVICE_ID

Update device name by device id

Options:
-n, --new-name TEXT  New name for the device  [required]
-m, --mode TEXT      Defines the output mode. Can be 'normal', 'json' or 'csv'
--help               Show this message and exit.

You have to specify the device_id as an argument at the end of the command. Option -n/--new_name is required and specifies the new name of the device. Option -m/--mode specifies how to print the result. It can be set to 'normal'/'json'/'csv' and the result will print in the desired format. The 'normal' mode pretty-prints results in the form of a table, it is the default option.

This command can fail if it fails to get data from Orchestra, in such situation it will display such message: "Error from orchestra. Status code {response.status_code}"

Command

$ ocli device update -n "Madagascarian Anura" <DEVICE_ID>

Output

$ ocli device update -n "Madagascarian Anura" 66729536aacf78527f191f64
╒═════════════════════╤═════════╤══════════════════════════════════╤══════════════════════════════════╤══════════════╤══════════════════════════╤══════════════════════════════════╤══════════════════════════════════╤═════════════════════╤══════════════════════════════════════════════════════════════════════════════════════════════════╤══════════════╤══════════════╕
│ name                │ type    │ created_at                       │ updated_at                       │ expires_at   │ id                       │ last_seen_online                 │ first_registration               │   interfaces_number │ interfaces_names                                                                                 │ connection   │ hostname     │
╞═════════════════════╪═════════╪══════════════════════════════════╪══════════════════════════════════╪══════════════╪══════════════════════════╪══════════════════════════════════╪══════════════════════════════════╪═════════════════════╪══════════════════════════════════════════════════════════════════════════════════════════════════╪══════════════╪══════════════╡
│ Madagascarian Anura │ GATEWAY │ 2024-06-19 08:22:14.640000+00:00 │ 2024-06-24 12:25:34.332000+00:00 │              │ 66729536aacf78527f191f64 │ 2024-06-24 12:25:34.474227+00:00 │ 2024-06-19 08:22:14.640000+00:00 │                   8 │ ['lo', 'eth0', 'wg0', 'docker0', 'br-2575307621b9', 'vethe164bf9', 'vethb09287b', 'vethbcbf1a9'] │ ONLINE       │ ctgwra.local │
╘═════════════════════╧═════════╧══════════════════════════════════╧══════════════════════════════════╧══════════════╧══════════════════════════╧══════════════════════════════════╧══════════════════════════════════╧═════════════════════╧══════════════════════════════════════════════════════════════════════════════════════════════════╧══════════════╧══════════════╛

Use option -m json to get output in a json format:

Command

$ ocli device update -m json -n Triadobatrachus <DEVICE_ID>

Output

$ ocli device update -m json -n Triadobatrachus 66729536aacf78527f191f64
[
    {
        "name": "Triadobatrachus",
        "type": "GATEWAY",
        "created_at": "2024-06-19T08:22:14.640000+00:00",
        "updated_at": "2024-06-24T12:30:30.827000+00:00",
        "expires_at": null,
        "id": "66729536aacf78527f191f64",
        "last_seen_online": "2024-06-24T12:30:30.253060+00:00",
        "first_registration": "2024-06-19T08:22:14.640000+00:00",
        "interfaces_number": 8,
        "interfaces_names": [
        "lo",
        "eth0",
        "wg0",
        "docker0",
        "br-2575307621b9",
        "vethe164bf9",
        "vethb09287b",
        "vethbcbf1a9"
        ],
        "connection": 2,
        "hostname": "ctgwra.local"
    }
]

Terminal plugin¶

The terminal plugin is used to connect to the devices’ terminal using Orchestra. It supports only one operation - start:

$ ocli ssh start --help
Usage: ocli ssh start [OPTIONS] DEVICE_ID

Start cli interface for the terminal

Options:
-u, --url TEXT  Url of the Orchestra server
--help          Show this message and exit

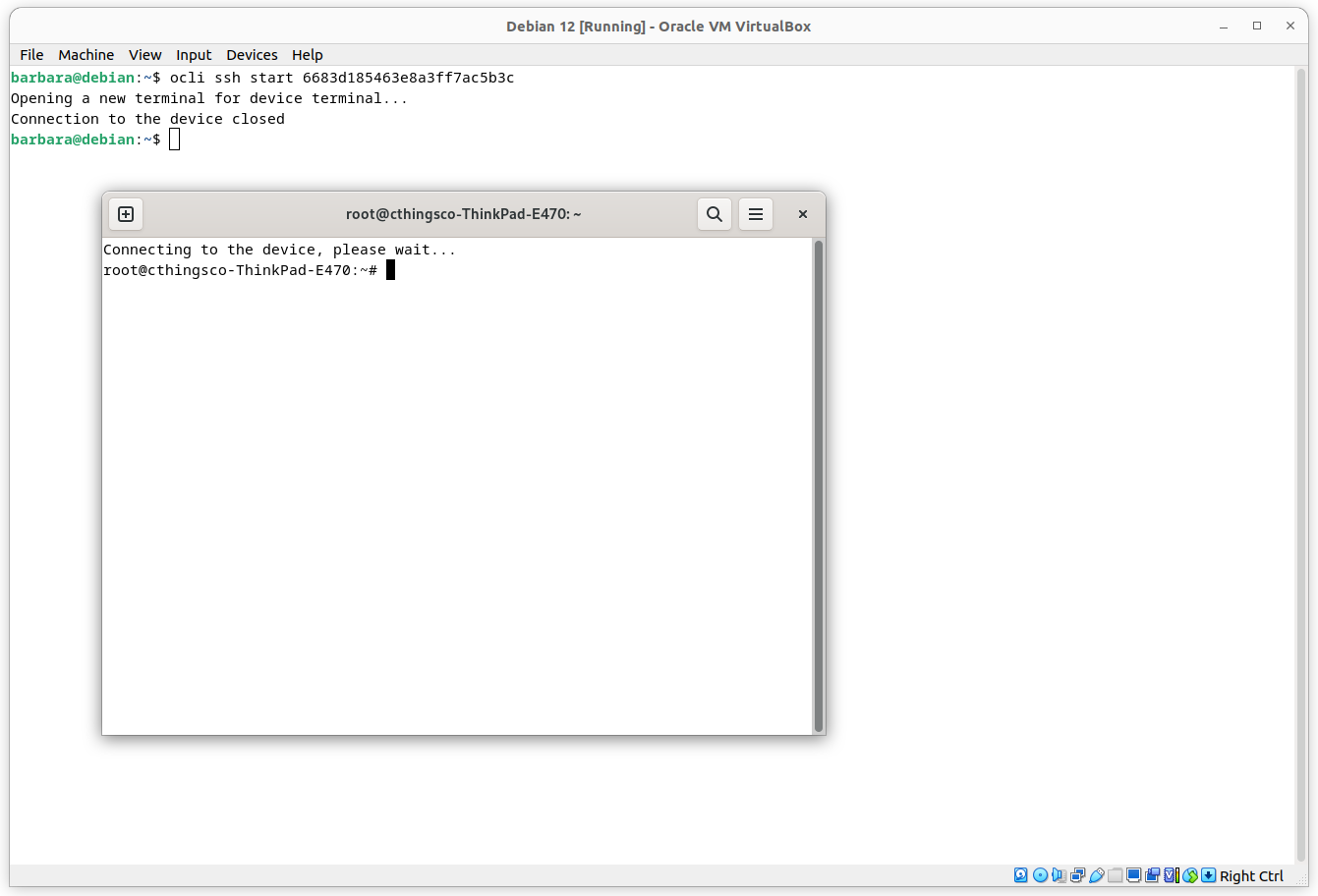

The -u/--url option is not required so the only thing that is required is to specify the DEVICE_ID at the end of the command. The command starts the device terminal in another command line. When you are done close the window to stop the connection.

Command

$ ocli ssh start <DEVICE_ID>

Output

$ ocli ssh start 6683d185463e8a3ff7ac5b3c
Opening a new terminal for device terminal...
Connection to the device closed
