2.3. Antenna Configuration

The gateway is equipped with a maximum of 4 antenna connectors, depending on the configuration of the specific device:

  1. 2x RP-SMA (female) connectors for the MIMO Wi-Fi subsystem

  2. 1x SMA (female) connector for the cellular or narrow-band subsystem

  3. 1x SMA (female) or RP-SMA (female) connector for GNSS or auxiliary systems such as Wirepas

../../../../../_images/antenna_configuration.png

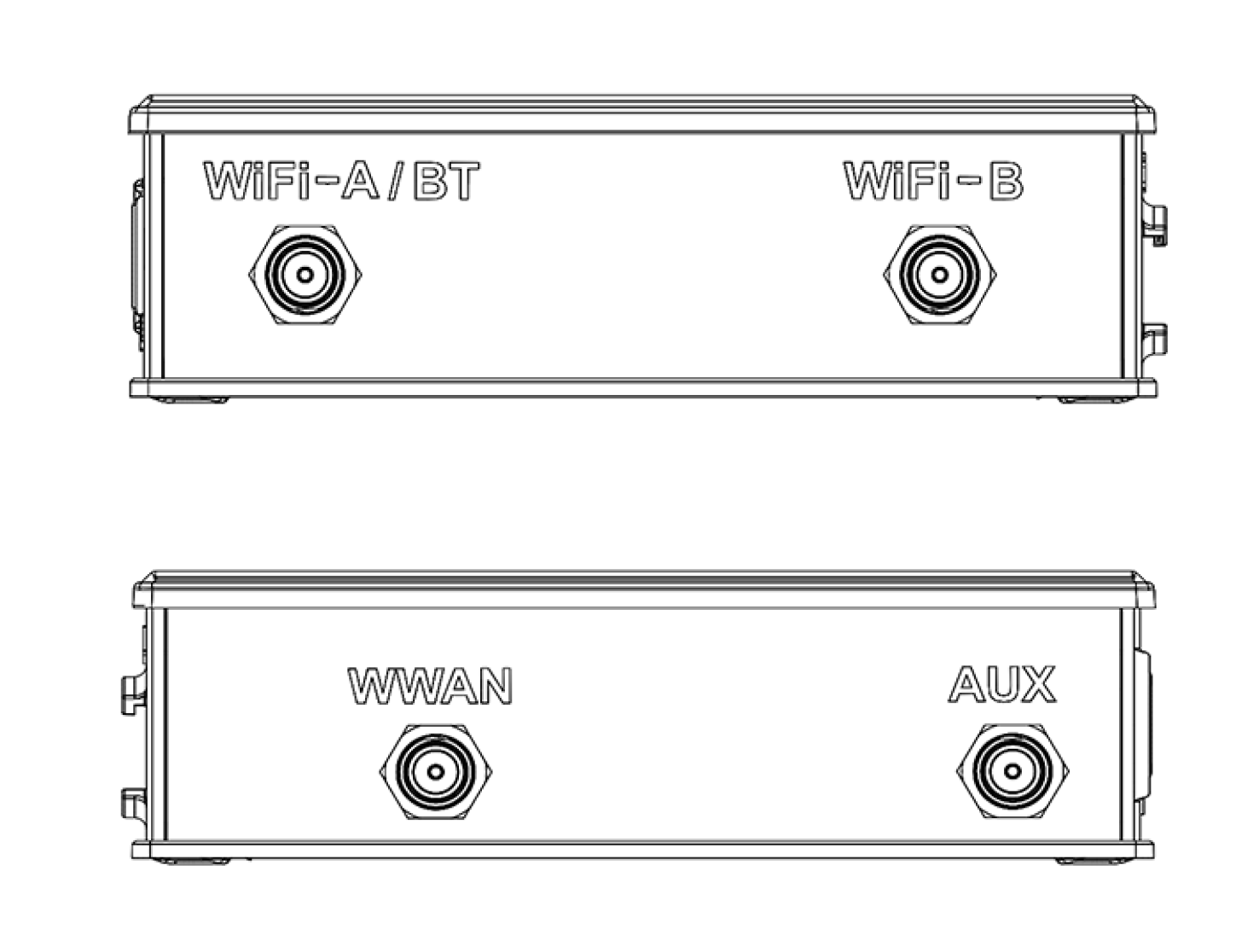

General antenna configuration

2.3.1. Cellular + GNSS variant

The cellular (any category) + GNSS variant of the gateway is equipped with the following two antennas:

  1. WWAN: 1x SMA (female) connector for the cellular or narrow-band subsystem

  2. AUX: 1x SMA (female) connector for GNSS

2.3.2. Cellular + GNSS + Wirepas (2.4 GHz) variant

The cellular (any category) + GNSS + Wirepas (2.4 GHz) variant of the gateway is equipped with the following three antennas:

  1. WWAN: 1x SMA (female) connector for the cellular or narrow-band subsystem

  2. AUX: 1x SMA (female) connector for GNSS

  3. WiFi-A/BT: 1x RP-SMA (female) connector for Wirepas (2.4 GHz)

2.3.3. Cellular + Wi-Fi/BT + Wirepas (2.4 GHz) variant

The cellular (any category) + Wi-Fi/BT + Wirepas (2.4 GHz) variant of the gateway is equipped with the following three antennas:

  1. WWAN: 1x SMA (female) connector for the cellular or narrow-band subsystem

  2. AUX: 1x RP-SMA (female) connector for Wirepas (2.4 GHz)

  3. WiFi-A/BT: 1x RP-SMA (female) connector for the main 2.4/5/6 GHz Wi-Fi/BT antenna

  4. WiFi-B: 1x RP-SMA (female) connector for Wi-Fi MIMO (This section had four items in the original LaTeX)

2.3.4. Wi-Fi/BT variant

The Wi-Fi variant of the gateway is equipped with the following two antennas:

  1. WiFi-A/BT: 1x RP-SMA (female) connector for the main 2.4/5/6 GHz Wi-Fi/BT antenna

  2. WiFi-B: 1x RP-SMA (female) connector for Wi-Fi MIMO

2.3.5. Wi-Fi/BT + Wirepas (2.4 GHz) variant

The Wi-Fi + Wirepas (2.4 GHz) variant of the gateway is equipped with the following three antennas:

  1. WiFi-A/BT: 1x RP-SMA (female) connector for the main 2.4/5/6 GHz Wi-Fi/BT antenna

  2. WiFi-B: 1x RP-SMA (female) connector for Wi-Fi MIMO

  3. AUX: 1x RP-SMA (female) connector for Wirepas (2.4 GHz)
